0.5m/s rated speed commercial escalator moving walk price
Email: sales@novaelevator.com
Tel: 008613601565806
| Warranty: | 1 Year | After-sale Service: | Online technical support, Onsite Installation, Onsite Training, Onsite Inspection |
| Project Solution Capability: | graphic design, total solution for projects | Place of Origin: | Jiangsu, China |
| Brand Name: | NOVA | Model Number: | NOVA Moving walk |
| Type: | Moving walk | Product name: | Moving Sidewalk, Auto-walk, Moving Walkway, Sidewalk |
| Rated speed: | 0.5m/s | Capacity: | 9000 P/hour |
| Certification: | ISO9001:2008,DAS,IAF,SGS,UKAS | Voltage: | 1 phase 380 V , 220V, 50Hz |
| Inclination: | 10~12 degree | Pallet width: | 600mm, 800mm, 1000mm |
| Color standard series: | Customized | Warranty period: | One year |
| Supply Ability | 10000 Piece/Pieces per Year |
| Packaging Details | Standard export package | Port | Shanghai |

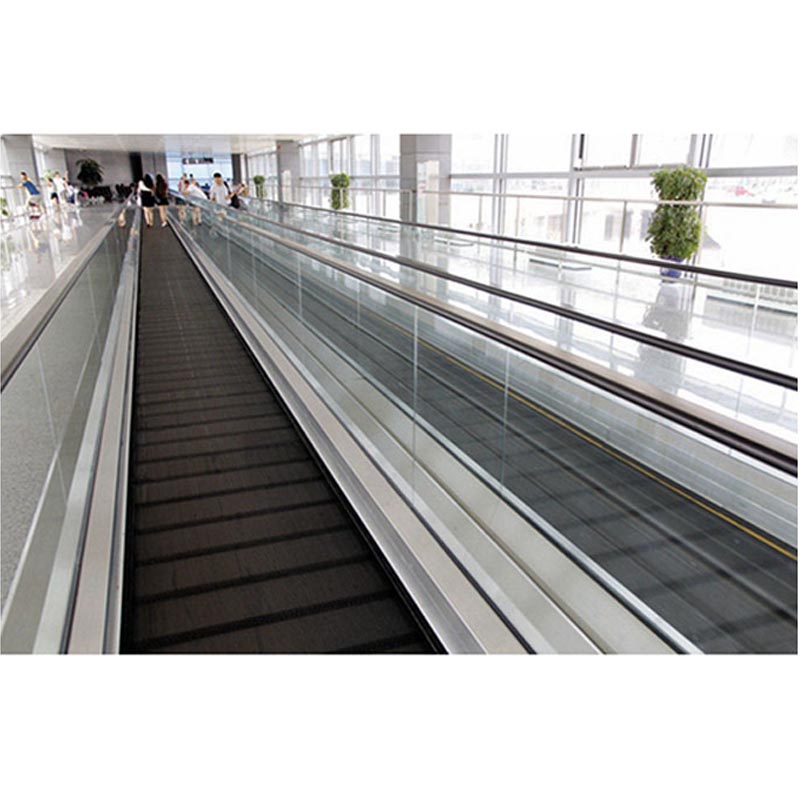

| Picture Example: |

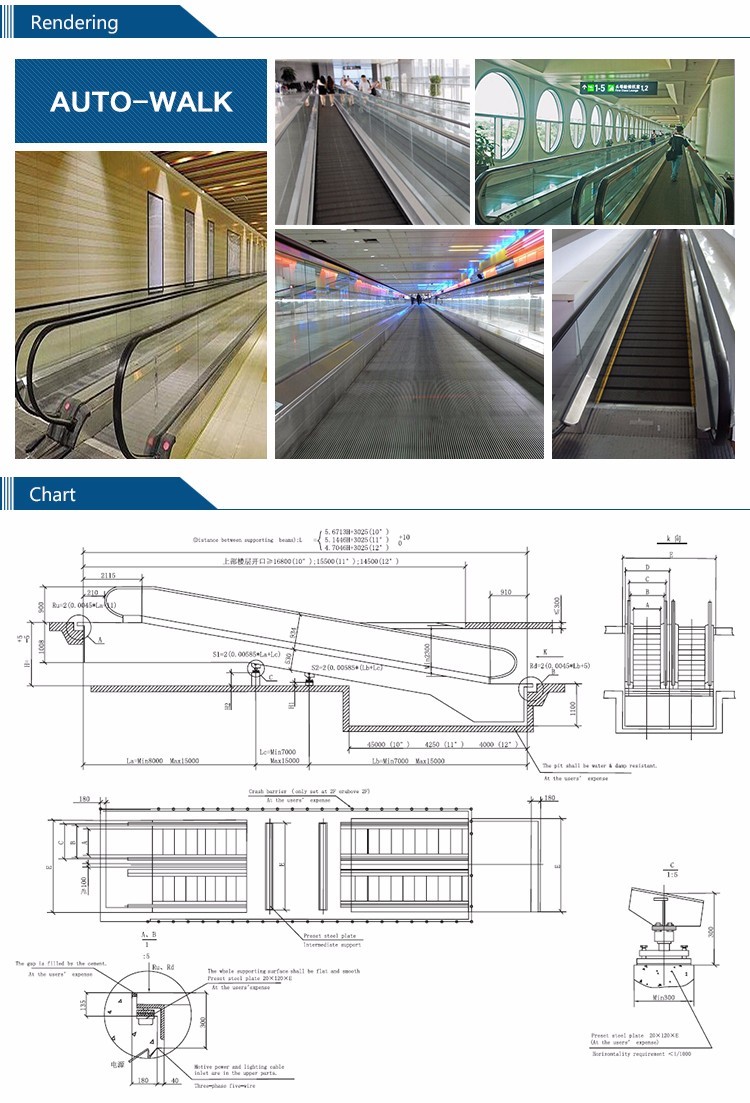

Specification
| Lifting height | Center Support | La(mm) | Lb(mm) | Lc(mm) | ||
| From | To | S1 | S2 | |||
| 1601 | 2663 | 1 | L-7000 | 700 | ||
| 2664 | 4151 | 1 | 15000 | L-15000 | ||
| 4152 | 58511000 | 1 | 1 | 15000 | 7000 | L-2000 |
| A | H2 | H1 | ||||
| 10° | H2=H-(La-1995)*0.1763-840 | H1=H2-(Lc*0.1763) | ||||
| 11° | H2=H-(La-2055)*0.1944-840 | H1=H2-(Lc*0.1944) | ||||
| 12° | H2=H-(La-2115)*0.2126-840 | H1=H2-(Lc*0.2126) | ||||
| Step width (mm) | Lifting height (mm) | Speed (m/s) | Person | Inclination (°) | Traction machine power(KW) | Power capacity (KVA) | Rated current (A) |
| 800 | 1000-3800 | 0.5 | 6750 | 10,11,12 | 7.5 | 15 | 39 |
| 3800-6000 | 11 | 22 | 58 | ||||
| 1000 | 1000-3000 | 0.5 | 9000 | 10,11,12 | 7.7 | 15 | 39 |
| 3000-4800 | 11 | 22 | 58 | ||||
| 4800-6000 | 15 | 30 | 78 |
Standard Function
1.Two direction moving
2.Emergency stop
3.Maintenance operation
4.Illumination for the passenger
5.Fault display
6.Static electricity protection
7.Emergency stop button
8.Skirting guard
9.Handrail entry safety protection
10.Main drive chains safety protection
11.Unintentional reversal protection
12.Phase failure protection
13.Over load protection
14.Step sagging protection
15.Step chains safety protection
16.Comb safety protection
1. Price
Re: please send us inquiry from Alibaba, we will qutoe to you within 24 hours. It’s more convenient and appreciated for us if you provide your company details and your detail inquiry for elevators.
2. Payment term
Re: T/T or L/C at sight.
3. Installation&Maintaining
Re: We will send installation&maintaining manual along with the elevator.
Our sugguestion is to hire a professional local company for installation and future maintaining,
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.
Technician will be sent to the job site if necessary.
4. Shipping&price term
Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.
